Your current location：Home > Products > FLOATED LACQUER SANDER

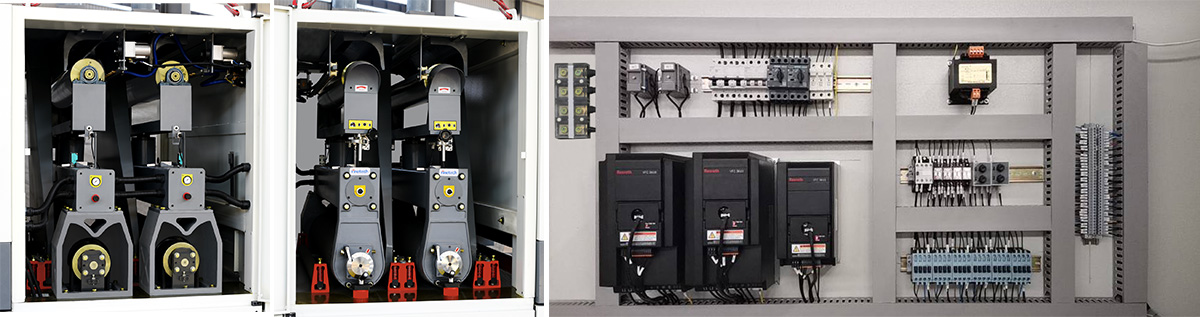

Large diameter eccentric spiral rubber calibrating rollers are used in all sanding heads, and have good sanding effect.
Floated structure is adopted to match with UV painting line.
High precision magnetic-grid positioning system ensures accurate height position and machine control.
| 技术参数 | Technical Specification | SFR- R1300V | SFR- R1000V | SFR- R700V |
|---|---|---|---|---|
| 最大加工宽度 | Max working width | 1300mm | 1000mm | 700mm |
| 最短加工长度 | Min working length | 380mm | 285mm | 285mm |
| 加工厚度 | Working thinkness | 2- 100mm | 2- 100mm | 2- 100mm |
| 输送速度（变频调速） | Feeding speed | 5- 26m/min | 5-30m/min | 5-30m/min |
| 砂带尺寸 | Abrasave belt size | 1330×2620mm | 1030×2100mm | 730×2100mm |
| 总功率 | Total Moter power | 27.52KW | 22.85KW | 17.83KW |
| 工作压力 | Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 压缩空气消耗量 | Air consumption | 17m3 /h | 9m3 /h | 7m3 /h |
| 吸尘量 | Volume of dust collection device | 8500m 3 /h | 4600m 3 /h | 4600m 3 /h |
| 外形尺寸 | Overall dimensions | 2112×2634×2310mm | 1715×2000×2125mm | 1415×2000×2125mm |
| 重量 | Net weight | 3900kg | 3000kg | 2500kg |
